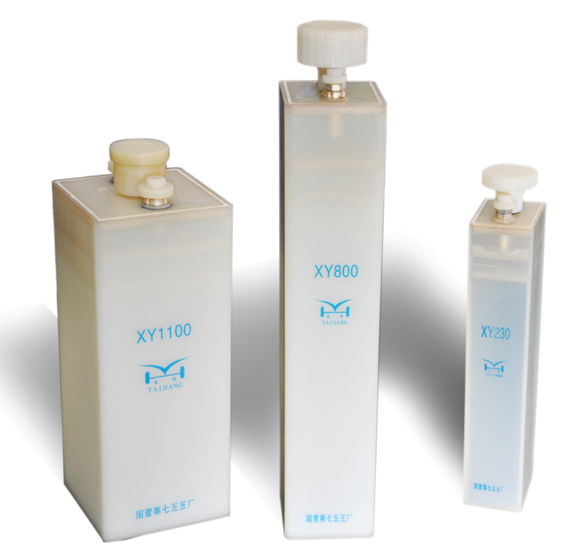

Zinc silver battery

Category：Zinc silver battery series
Clicks：
Release date：2015/08/31
More
Inquiry

Details

Technology is introduced

A, zinc, silver is silver oxide battery as the anode, a cathode zinc, has zinc oxide saturated potassium hydroxide solution for alkaline battery electrolyte. It has small volume, light weight, large capacity, high than energy and power, small self-discharge loss, stable discharge voltage, etc.

Second, the series of battery is suitable for the start of the military equipment, unmanned aerial vehicles (uavs) and other equipment power, aviation for navigation, special lighting, communications, precision instruments and meters and telemetry equipment such as dc power.

Product specifications:

型号 Models	额定容量 Rated Capacity （Ah）	额定电压 Nominal Voltage (V)	最大外形尺寸 Dimension（mm）			最大重量Weight （kg）	电液量Electrolyte Volume （mL）	极柱螺纹	壳体材料	国外型号
型号 Models	额定容量 Rated Capacity （Ah）	额定电压 Nominal Voltage (V)	长（L）	宽(W)	高(H)	最大重量Weight （kg）	电液量Electrolyte Volume （mL）	极柱螺纹	壳体材料	国外型号
XY20	20	1.5	41	39	120	0.36	47	M6	尼龙	---
XY25	25	1.5	41	39	120	0.38	45	M6	尼龙	---
XY50	50	1.5	56	53	160	0.93	135	M6	尼龙	---
XY100	100	1.5	81	48	183	1.50	270	M8	尼龙	---
XY150	150	1.5	80	51	237	2.10	270	M14	尼龙	---
XY230*	230	1.5	91.5	64	64	3.70	625	M10	尼龙	---
XY600*	600	1.5	121	103	103	10.5	1450	M14	尼龙	---
XY800*	800	1.5	116	98.2	98.2	12.8	1625	M10	尼龙	---
XY1100*	1100	1.5	148	139	139	15.3	1900	M10	尼龙	---
XYG45-(3)	45	1.5	57	53	160	0.95	125	M10	尼龙	---
XYG45-(3)G	45	1.5	57	53	160	0.95	125	M10	尼龙	---
XYG55	55	1.5	57	53	175	0.98	135	M10	尼龙	---
XYG80	80	1.5	60	44	247	1.35	220	M10	聚砜	---
XYG85	85	1.5	81	48	183	1.45	200	M8	聚砜	---
XYG110	110	1.5	80	51	237	2.10	270	M16	尼龙	---
XYG110-（1）	110	1.5	80	50.5	237	2.11	270	M16	聚砜	---
XYG200	200	1.5	91	62	314	3.70	500	M14	尼龙	---
2XY8	8	3.0	40	39	120	0.38	48	M5	尼龙	---
2XYG8	8	3.0	41	39	120	0.36	44	M6	尼龙	---

6XYG20	20	9.0	118	57	160	2.10	270	M6	尼龙	---
15XYG45-(3)	45	22.5	434	131	224	17.9	1875	M10	不锈钢	---
15XYG45-(3)A	45	22.5	512	131	218	18.3	1875	M10	不锈钢	---
15XYG45-(3)G	45	22.5	434	131	227	17.9	1875	M10	不锈钢	---
15XYG55	55	22.5	512	131	218	20.0	2025	M10	不锈钢	---
2XYG80	80	3.0	78	70	245	3.07	440	M8/M14	聚砜	---
2XYG83	83	3.0	73	68.5	282	3.07	440	M8/M14	聚砜	---
16XY25	25	24	230	168	130	7.50	720	M6	不锈钢	---
16XYG8	8	24	175	127	130	3.80	352	M6	不锈钢	---
