Technology is introduced
A bag, cadmium nickel battery has excellent electrical performance, long service life, rigid structure, resistant to over charge over discharge, battery, high reliability, maintenance is simple and convenient. IEC60623 standard completely.
Two, this series of battery is widely used in railway vehicle, communication station, electric appliances, weibo communications, lighting, UPS, dc power device standby power supply and dc operation power, as well as the diesel engine, dc motor startup power source, means of transport of dc power can also be used with solar energy, wind power equipment of form a complete set of energy storage.
specification

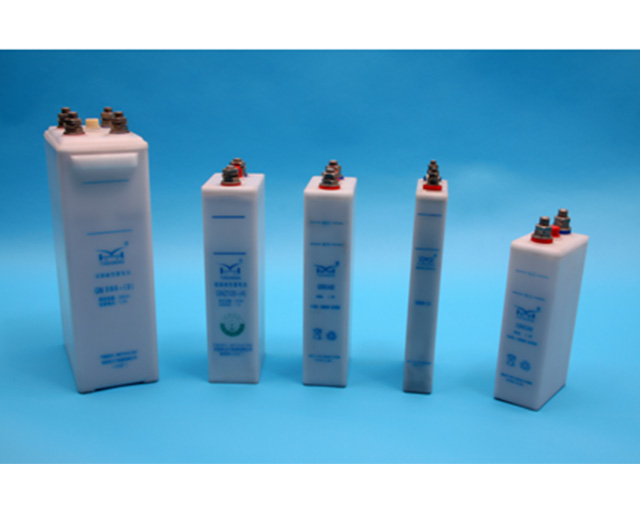

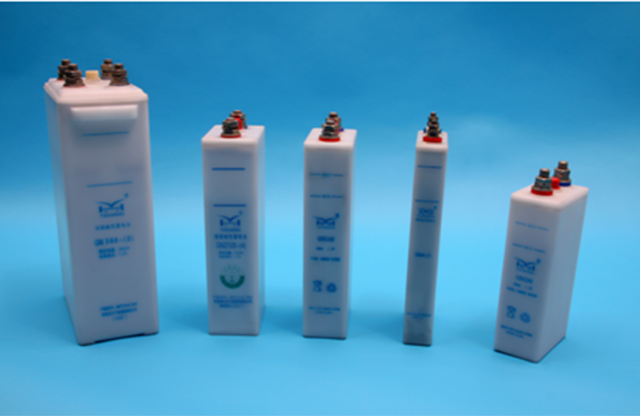

Bag high-magnification cadmium nickel battery
Paramenters of high and medium rate Ni-Cd battery
型号 Models | 额定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量 Weight （kg） | 电解液Electrolyte Volume （L） | 极柱螺纹 | 壳体材料 | 循环寿命 | 国外型号 | ||
长（L） | 宽(W) | 高(H) | ||||||||
GNG20 | 20 | 139 | 79 | 291 | 5.00 | 1.50 | M16 | ABS | ≥500次 | KH20P |
GNG30 | 30 | 139 | 79 | 291 | 5.00 | 1.40 | M16 | ABS | ≥500次 | KH30P |
GNG40 | 40 | 139 | 79 | 361 | 6.50 | 1.72 | M16 | ABS | ≥500次 | KH40P |
GNG50 | 50 | 139 | 79 | 361 | 6.50 | 1.70 | M16 | ABS | ≥500次 | KH50P |
GNG60 | 60 | 165 | 105 | 350 | 9.30 | 1.85 | M20×1.5 | ABS | ≥500次 | KH60P |
GNG70 | 70 | 165 | 105 | 350 | 9.30 | 1.80 | M20×1.5 | ABS | ≥500次 | KH70P |
GNG80 | 80 | 165 | 105 | 350 | 9.30 | 1.75 | M20×1.5 | ABS | ≥500次 | KH80P |
GNG100 | 100 | 167 | 162 | 343 | 13.5 | 3.10 | M20×1.5 | ABS | ≥500次 | KH100P |
GNG120 | 120 | 167 | 162 | 343 | 13.5 | 3.08 | M20×1.5 | ABS | ≥500次 | KH120P |
GNG150 | 150 | 284 | 172 | 348 | 24.5 | 5.83 | M20×1.5 | ABS | ≥500次 | KH150P |
GNG200 | 200 | 291 | 174 | 501 | 39.0 | 8.5 | M20×1.5 | ABS | ≥500次 | KH200P |
GNG250 | 250 | 291 | 174 | 501 | 39.0 | 8.0 | M20×1.5 | ABS | ≥500次 | KH250P |
GNG300 | 300 | 291 | 174 | 501 | 39.0 | 7.5 | M20×1.5 | ABS | ≥500次 | KH300P |
GNG400 | 400 | 397 | 183 | 564 | 66.0 | 16 | M20×1.5 | ABS | ≥500次 | KH400P |
GNG500 | 500 | 397 | 183 | 564 | 66.0 | 15 | M20×1.5 | ABS | ≥500次 | KH500P |
Cadmium nickel ratio battery in bag,
Paramenters of high and medium rate Ni-Cd battery
型号 Models | 额定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量 Weight （kg） | 电解液Electrolyte Volume （L） | 极柱螺纹 | 壳体材料 | 循环寿命 | 国外型号 | ||
长（L） | 宽(W) | 高(H) | ||||||||
GNZ20 | 20 | 142 | 66 | 227 | 3.50 | 1.10 | M10×1 | ABS | ≥500次 | KM20P |
GNZ30 | 30 | 142 | 66 | 227 | 3.50 | 1.0 | M10×1 | ABS | ≥500次 | KM30P |
GNZ40 | 40 | 139 | 79 | 291 | 5.00 | 1.50 | M16 | ABS | ≥500次 | KM40P |
GNZ50 | 50 | 139 | 79 | 291 | 5.00 | 1.30 | M16 | ABS | ≥500次 | KM50P |
GNZ60 | 60 | 139 | 79 | 291 | 5.00 | 1.20 | M16 | ABS | ≥500次 | KM60P |
GNZ60-(2) | 60 | 138 | 78 | 290 | 5.50 | 1.30 | M16 | ABS | ≥500次 | KM60P |
GNZ75 | 75 | 139 | 79 | 361 | 6.50 | 1.67 | M16 | ABS | ≥500次 | KM75P |
GNZ80 | 80 | 139 | 79 | 361 | 6.50 | 1.6 | M16 | ABS | ≥500次 | KM80P |
GNZ85 | 85 | 165 | 105 | 350 | 9.3 | 2.0 | M20×1.5 | ABS | ≥500次 | KM85P |
GNZ100 | 100 | 165 | 105 | 350 | 9.3 | 1.75 | M20×1.5 | ABS | ≥500次 | KM100P |
GNZ100-(3) | 100 | 140 | 79 | 362 | ||||||
